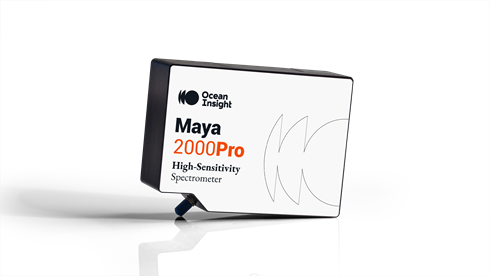

Maya2000 Prospectrometers are a great choice for applications requiring high sensitivity, good UV-NIR response and wide dynamic range. Applications range from low light level fluorescence and Raman measurements to absorbance, transmission and emission analysis of solutions, solids and gases.
Maya2000 Pro光谱仪可在自定义配置中提供（您选择理想的台式组件）和预配置（我们优化特定应用程序的光谱仪）选项。
Product Overview
- Powerful– extra-sensitive spectrometer for absorbance, transmission and low light measurements including fluorescence and Raman
- Flexible– connect accessories to the Maya2000 Pro and take advantage of triggering capabilities for more complex applications
- Sensitive– high performance back-thinned 2D CCD detector
- 成本效益- 卓越的性能，即传统台式仪器的成本
- 深紫色版本- 预配置的UV敏感选项具有响应<200nm，包括25μm狭缝
- Purge Port- 允许用氮气吹扫以进行深紫外线测量
需要一个自定义配置的光谱仪？
Flexibility in the selection of gratings, slits and other components
允许用户自定义针对特定测量挑战的解决方案。亚博提现能秒速到账
Contact us要了解如何配置光谱仪。
利用我们的技术指导和这种交互式光谱仪范围分辨率工具。
Specifications
选择模型to see full specifications
Spectroscopy:
- Wavelength Range:
- 155nm - 305nm
- Optical Resolution:
- 0.18 nm fwhm（典型）
- Integration Time:
- 7.2ms - 5s.
- Dynamic Range:
- 15000:1 (typical)
- Input Fiber Connector:
- SMA 905
- Signal to Noise Ratio:
- 〜450：1
Detector:
- Grating:
- GRATING_#H10U
- Detector:
- 后稀释的CCD图像传感器
- Entrance slit:
- 25μm.
- 量子效率：
- 75% peak @ 600 nm
电子产品：
- Connectors:
-
USB 2.0
RS-232 - 触发模式：
- 4模式
- Power Requirement:
- 500 mA @ 5 VDC
- 频闪函数：
- 是的
环境的:
- Humidity:
- 0-90% non-condensing
- 材料：
- RoHS
- 工作温度：
- 0 °C to 50 °C
Physical:
- Dimensions:
-
148.6 x 109.2 x 46.4 mm without feet
148.6 x 109.2 x 49.3 mm，脚 - Weight:
- 0.96 kg (2.1 lb.)
