产品详情

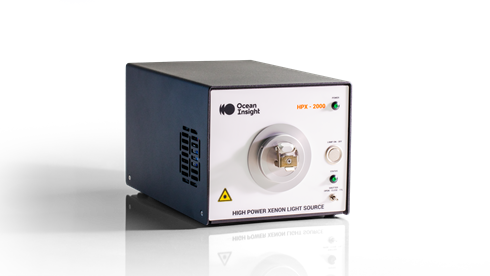

The HPX-2000-HP-DUV light source is much more intense, especially in the UV region. Driven by a 75 W source, the HPX-2000-HP-DUV provides output intensity that is almost 4x higher across the entire range compared to the output of the HPX-2000.
The HPX-2000-HP-DUV has an integrated shutter that can be controlled by a a TTL signal or a switch on the front panel, allowing you to limit the exposure of the sample to this high intensity source.
Product Overview
- UV to NIR response- 提供从185 nm-2000 nm（2.0μm）的输出
- Extra high power source- 标称灯泡功率为75 W
- Integrated shutter- 有助于保护光敏样品
- Built-in filter holder-- accommodates filtering of light before it enters the fiber optic aperture
Specifications
选择模型to see full specifications
Engineering:
- Wavelength Range:
- 185nm - 2μm
- Source:
- Continuous Xenon
- 名义灯泡力量：
- 75 W.
- 典型输出功率：
- 6.13 mW
- 来源寿命：
- 1000 hours
- 热身时间：
- 30 minutes
Physical:
- Fiber Connector:
- SMA 905
- Dimensions:
- 14.5 x 16.5 x 26 cm
- 集成过滤器支架：
- No
- Power Consumption:
- 105 W
- 触发/快门输入连接：
- SUB-D-15 pin
- Trigger/Shutter Input Signal:
-
TTL
Up to 2.5 Hz maximum - Weight:
- 6 kg
- 电源要求：
-
85-264 V.
50/60 Hz.
环境的:
- 安全与监管：
-
CE
VDI/VDE 0160
EN 61011
- Operating Humidity Specification:
- 5-95% without condensation at 40°C
- 工作温度：
- 5°C – 35°C
-
Item Code: HPX-2000
-
Item Code: PX-2
Accessories
-

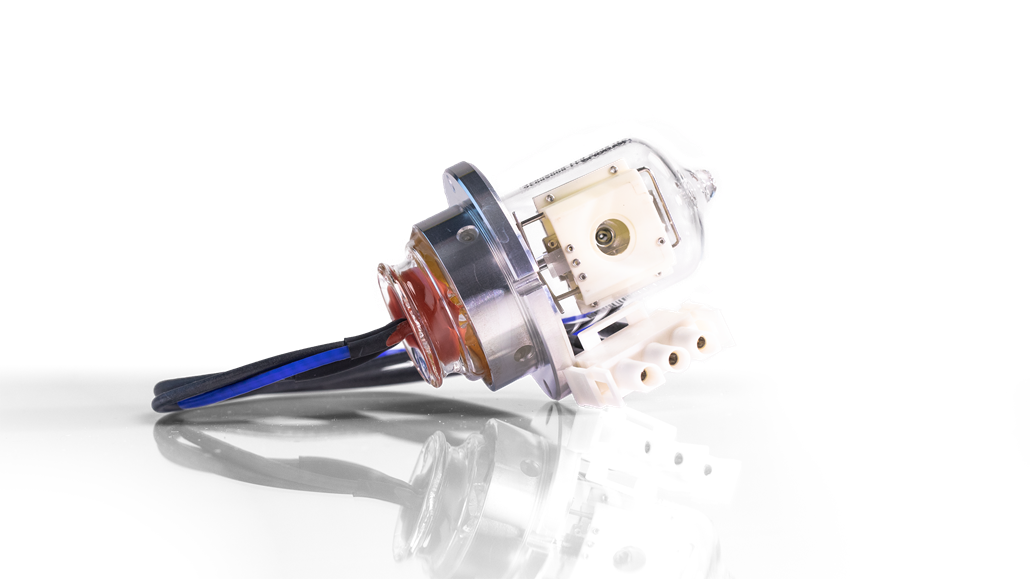

Item Code: DH-2000-DUV-B
