Product Details
Whether you are studying a sample that has multiple features in different areas or you analyze a variety of different samples in your lab, the use of a light source that covers a wide spectral range is useful.
Combination deteurium-tungsten halogen light sources fit the bill. From measuring organics and small molecules to the near-IR absorption of plastics and polymers, a combination light source allows you to extend the capabilities of your measurement. Using a combination of two lamps or a single lamp that has a wide spectral output, the entire UV-Visible-NIR range can be explored.
Product Overview

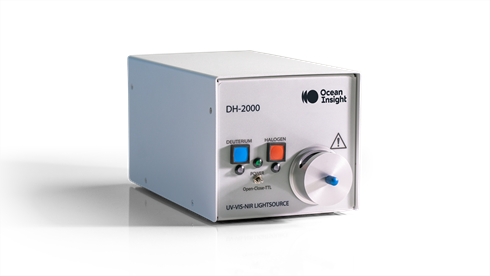

- Deuterium and tungsten halogen-- two powerful light sources combined in a single optical path from ~200-2500 nm
- Integrated shutter-- limits the exposure of samples to UV light
- Integrated filter holder-- holds optical filters to condition the light prior to coupling into the fiber optic cable
- TTL control (model-dependent)-- allows the deuterium and halogen bulbs to be turned on/off individually and remotely
Specifications
Select model to see full specifications
Engineering:
- Wavelength Range:
- 190nm - 2.5μm
- Source:
-
Deep-UV Deuterium & Tungsten Halogen
Deuterium & Tungsten Halogen - Nominal Bulb Power:
-
20 W (tungsten halogen)
26 W (deuterium)
25 W (deuterium)
20 W (tungsten halogen) - Typical Output Power:
-
194 µW (deuterium bulb)
615 µW (tungsten bulb)
217 μW (deuterium)
295 μW (tungsten halogen)
585 μW (deuterium)
990 μW (tungsten halogen)
- Source Lifetime:
-
1000 hours
Deuterium & Tungsten Halogen - Stability of Light Source Output:
-
≤0.1%/hour @ 254 nm (deuterium)
≤0.1%/hour @ 700 nm (tungsten halogen) - Warm-up Time:
- 25 minutes
Environmental:
- Safety & Regulatory:
-
CE
ROHS
WEEE
- Operating Humidity Specification:
- 5-95% without condensation at 40 °C
- Operating Temperature:
- 5 °C – 35 °C
Physical:
- Shutter:
- Yes
- 光纤连接器:
- SMA 905
- Cuvette Pathlength:
- 10 mm
- Dimensions:
-
15 x 13.5 x 28.5 cm
88.9 x 124.1 x 40.1 mm (with feet) - Integrated Filter Holder:
-
No
Yes - Power Consumption:
- Approximately 78VA
- Trigger/Shutter Input Connection:
- SUB-D-15 pin
- Trigger/Shutter Input Signal:
-
TTL
Up to 2.5 Hz maximum - Weight:
- 350 g - 5.5 kg
- Integrated Cuvette Holder:
-
No
Yes - Power Requirements:
-
5V DC external power supply (included)
85-264 V 50/60 Hz
85-264 V
50/60 Hz
-
Options available
Prices From 948,00 €
