Product Details
Splitters can split or mix light using a Y-configuration and connect easily to spectrometers and accessories.
Splitters mix light from two different locations and deliver it through a single fiber to a spectrometer or sample. This is useful when combining output from two different light sources, or to mix light collected from two different sampling points before delivery to a spectrometer.
Product Overview

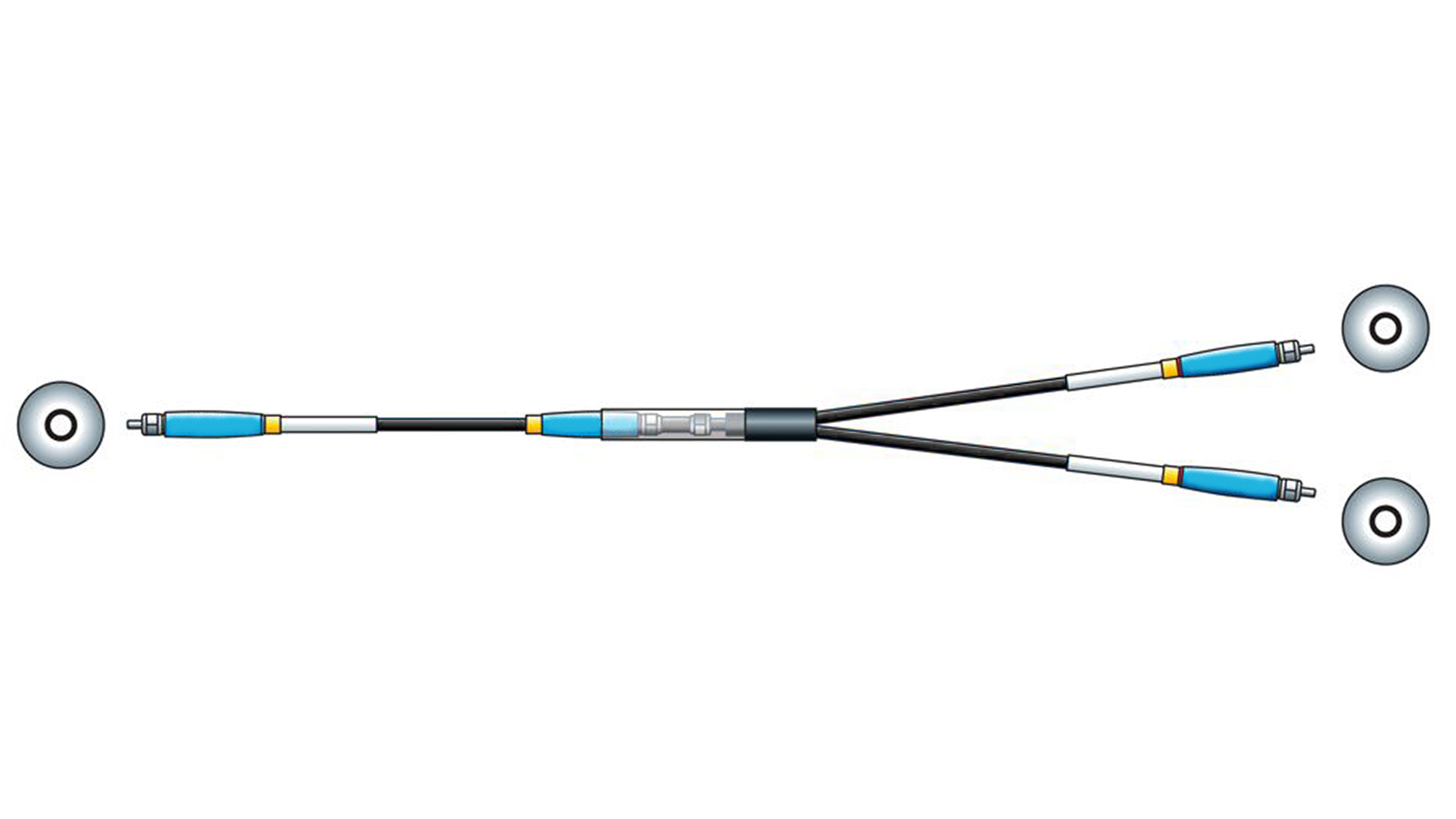

- Splitter assembly-- comprises three fibers – two fiber legs on one side that overlap inside a junction with a third fiber at the common end
- Fiber types-- fiber type (by transmission efficiency) used in each leg is the same, but custom assemblies can be requested
- Wavelength options-- UV-Visible (300-1100 nm) and Visible-NIR (400-2100 nm)
Specifications
Select model to see full specifications
Engineering:
- Wavelength Range:
- 400nm - 2.1μm
- Fiber Core Size:
-
200 µm
400 µm - Length:
- 2 m
- Jacket:
- PVDF zip tube
- Buffer Materials:
- Polyimide
- Cladding OD:
-
10 µm
20 µm - Cladding OD Tolerance:
-
± 3 µm
± 5 µm - Connector:
- SMA 905
- Fiber Core Size Tolerance:
-
± 4 μm
± 8 μm - Long Term Bend Radius:
-
16 cm
8 cm - Maximum OD:
-
243 µm
487 µm - Primary Buffer OD:
-
10 µm
20 µm - Primary Buffer OD Tolerance:
-
± 7 µm
± 5 µm - Short Term Bend Radius:
-
4 cm
8 cm
Environmental:
- Operating Temperature:
- -65 to 300 °C
