Product Details

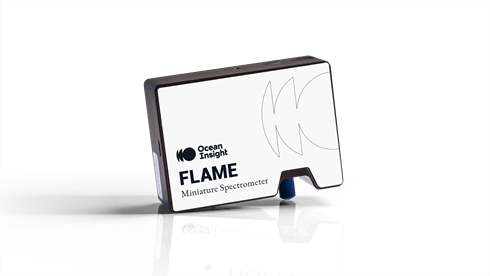

Flame series spectrometers deliver all the benefits of miniature, modular spectroscopy — without comprise.
These compact spectrometers integrate performance-enhancing features and are produced using industry-leading manufacturing techniques. Enjoy the benefits of greater thermal stability and lesser unit-to-unit variability, plus the freedom of interchangeable slits, simple device connectors and LED status indicators.
Product Overview
- Modular— configurable to your application needs within the 350-1000 nm wavelength range
- Compatible— works with Ocean Insight light sources, accessories and software
- Easy to use— plug and play via the micro USB connection
- User interchangeable slit— vary the resolution and throughput of the spectrometer on demand
- Indicator LEDs— indicator of power and data transfer status at all times
- Compact and lightweight— 89.1 mm x 63.3 mm x 34.4 mm and just 265 g
Need a custom configured spectrometer?
Flexibility in the selection of gratings, slits and other components
allows users to customize solutions for specific measurement challenges.
Contact usto find out how a spectrometer can be configured.
Take advantage of our technical guidance and this interactive spectrometer range-resolution tool.
Specifications
Select model to see full specifications
Spectroscopy:
- Wavelength Range:
- 350nm - 1μm
- Optical Resolution:
-
1.33 nm FWHM (typical)
1.34 nm FWHM (typical) - Integration Time:
- 1ms - 65s
- 修正线性:
- >99%
- Dark Noise:
- 50 RMS counts
- Dynamic Range:
-
1300:1 for a single acquisition
8.5 x 10^7 (system) - Signal to Noise Ratio:
-
250:1 (full signal)
300:1 (full signal)
Detector:
- Grating:
- GRATING_#3
- Pixels:
-
2048
3648
Electronics:
- A/D Resolution:
- 16 bit
- Inputs/Outputs:
- 8 x user programmable GPIOs
- Trigger Modes:
- 4 modes
- Power Consumption:
- 250 mA @ 5 VDC
Physical:
- Dimensions:
- 89.1 mm x 63.3 mm x 31.9 mm (34.4 mm with feet)
- Weight:
- 265 g
-
Options available
-
Item Code: OCEAN-HDX-VIS-NIR
-
Options available
Prices From 3 412,00 €
-
Item Code: FLAME-CHEM-VIS-NIR
-
Options available
Prices From 3 851,00 €
