产品详情

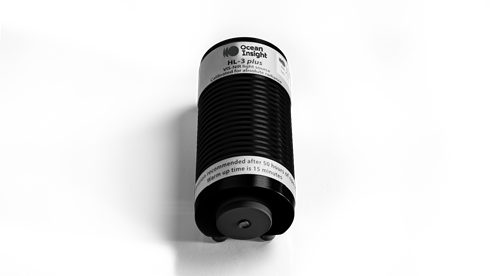

来自海洋见解的放射光度法校准光源用于校准光谱仪系统的绝对光谱响应。亚博最新网站多少使用这些光源和我们的软件,您可以确定紫外线,可见和NIR波长之间的绝对强度值。
Radiometrically calibrated light sources are carefully characterized to deliver a known quantity of light with very low uncertainty. Each source is measured to NIST-traceable standards, creating an unbroken chain of traceability and providing you with the highest quality and most reliable data.
产品概述
- 稳定的来源-- provide consistent output for the most reliable data
- 多个选项- 用于紫外可见度和可见光波长的放射学校准源
- 数字校准数据-- can be loaded into software for absolute intensity data
- 应用灵活性-- measure LEDs, digital displays and other radiant sources
规格
选择模型以查看完整规格
工程:
- 波长范围:
- 350nm - 1.1μm
- 来源:
- 钨卤素
- Nominal Bulb Power:
- 5 W
- 校准:
- 绝对辐照度(µW/cm2/nm)
- 校准寿命:
- 50小时
- Drift (Voltage):
- <0.3%
- Minimum Uncertainty Level:
- 7%
- Stability (Current):
- 0.5%峰值到峰
- Warm-up Time:
- 15分钟
环境的:
- Safety & Regulatory:
-
CE
Rohs
WEEE
- 操作湿度规格:
- 5-95%在40°C下无冷凝
- Operating Temperature:
- 5 °C – 35 °C
身体的:
- 光纤连接器:
- 整合球
- 方面:
- 14 x 6 x 6厘米
- 能量消耗:
- 1.2 A @ 12 VDC
- 重量:
- 0.5公斤
- 电源要求:
-
85-264 V
50/60 Hz
